PE-12
Single Braid
Using the same high-tenacity fiber we use in our value-packed Portland Braid, this polyester single braid offers a single-end-per-carrier construction, which keeps the rope from flattening out in service and self-centers in sheaves beautifully.
PE-12
Using the same high-tenacity fiber we use in our value-packed Portland Braid, this polyester single braid offers a single-end-per-carrier construction, which keeps the rope from flattening out in service and self-centers in sheaves beautifully.
- Single-end-per carrier
- Easy to splice and field repairs are easy to accomplish
- High twist and braid angles improve wear resistance
- Available in unlimited lengths and brilliant colors for easy identification.
PE-12 comes with the same tough grades of Maxijacket urethane we use on our more expensive products. PE-12 is torque free and is undamaged when rigging with swivels.
PE-12 Splicing Instructions
Approved Splice Technique: #10015101 (Single Braid Eye Splice).
Industrial Single Braid – Eye Splice
PE-12 Specifications and Data
| Diameter (in) | Spliced Minimum Breaking Strength (lbf)* | Unspliced Minimum Breaking Strength (lbf)** | Average Breaking Strength (lbf) | Weight (lb/100ft) |
|---|---|---|---|---|
| 3/8 | 5,500 | 6,100 | 6,200 | 3.9 |
| 7/16 | 9,000 | 9,900 | 10,000 | 6.5 |
| 1/2 | 12,500 | 13,500 | 14,000 | 8.4 |
| 9/16 | 14,500 | 16,000 | 16,500 | 10.2 |
| 5/8 | 17,500 | 19,000 | 19,500 | 11.5 |
| 3/4 | 20,500 | 23,000 | 23,000 | 15.7 |
| 7/8 | 34,000 | 37,500 | 38,000 | 22.9 |
| 1 | 38,500 | 42,000 | 43,000 | 27.2 |
| Diameter (mm) | Spliced Minimum Breaking Strength (kg)* | Unspliced Minimum Breaking Strength (kg)** | Average Breaking Strength (kg) | Weight (kg/100m) |
|---|---|---|---|---|
| 10 | 2,500 | 2,700 | 2,800 | 5.8 |
| 11 | 4,000 | 4,400 | 4,500 | 9.7 |
| 13 | 5,600 | 6,200 | 6,300 | 12.5 |
| 14 | 6,700 | 7,400 | 7,500 | 15.2 |
| 16 | 8,000 | 8,800 | 8,900 | 17.1 |
| 19 | 9,400 | 10,000 | 10,500 | 23.4 |
| 22 | 15,500 | 17,000 | 17,500 | 34.1 |
| 25 | 17,500 | 19,000 | 19,500 | 40.5 |

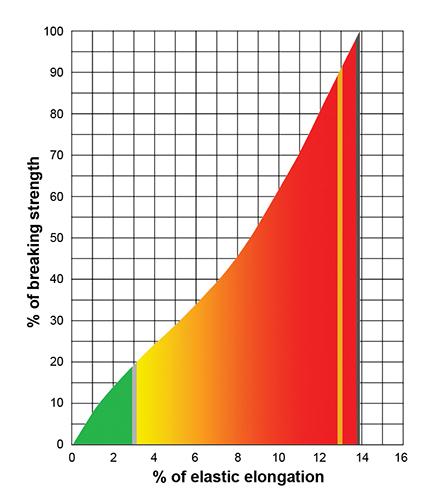

Working Details
Green working 405 ft. lbs./lb.
Red ultimate 8,738 ft. lbs./lb.
Specific Gravity
1.38
Dielectric Strength
The maximum allowable leakage for clean, dry PE-12 is 100 micro-amperes when tested at 100kV per Yale Method 712-1701 Rev 1 “Routine Production Test.” Absorbed and entrained moisture or impurities will increase rope’s conductivity dramatically.
