Optimus
Single Braid

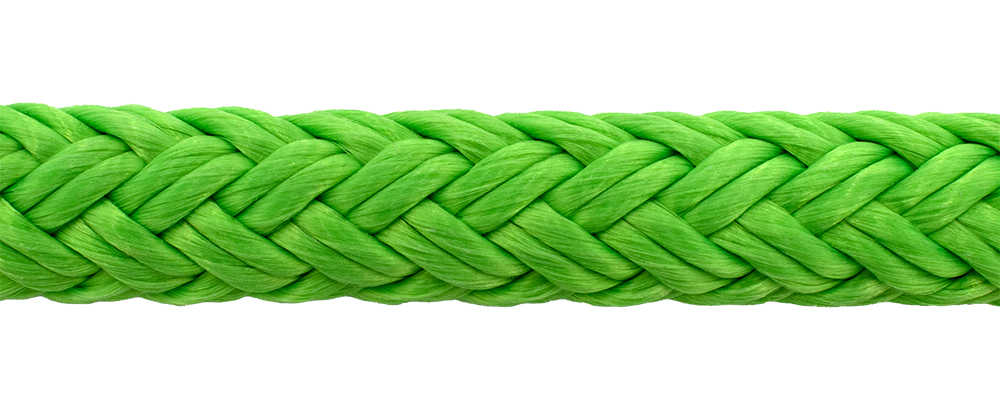

Optimus is a single-braid 12-strand rope manufactured from a solution-dyed polyester and coated with our riggers-grade, abrasion-resistant coating to maximize protection. The vibrant polyester colorfast fibers are resistant to fading and provide lifelong visibility.
Optimus
Optimus is a single-braid 12-strand rope manufactured from a solution-dyed polyester and coated with our riggers-grade, abrasion-resistant coating to maximize protection. The vibrant polyester colorfast fibers are resistant to fading and provide lifelong visibility.
- Provides optimal UV and weather resistance while maintaining its lightweight and flexible characteristics.
- Color coded by diameter for easy identification in the field.
- Manufactured with a braid angle specifically designed for slings and splicing.
Optimus Splicing Instructions
Approved Splice Technique: #10015101 (Single Braid Eye Splice).
Industrial Single Braid – Eye Splice
Optimus Specifications and Data
| Diameter (in) | Spliced Minimum Breaking Strength (lbf)* | Unspliced Minimum Breaking Strength (lbf)** | Average Breaking Strength (lbf) | Weight (lb/100ft) |
|---|---|---|---|---|
| 3/8 | 5,400 | 5,900 | 6,000 | 4 |
| 1/2 | 12,000 | 13,000 | 13,500 | 9.2 |
| 5/8 | 17,000 | 18,500 | 19,000 | 11.7 |
| 3/4 | 22,500 | 24,500 | 25,000 | 16 |
| 7/8 | 32,000 | 35,500 | 36,000 | 25 |
| Diameter (mm) | Spliced Minimum Breaking Strength (kg)* | Unspliced Minimum Breaking Strength (kg)** | Average Breaking Strength (kg) | Weight (kg/100m) |
|---|---|---|---|---|
| 10 | 2,400 | 2,600 | 2,700 | 6 |
| 13 | 5,500 | 6,000 | 6,200 | 13.7 |
| 16 | 7,700 | 8,500 | 8,600 | 17.4 |
| 19 | 10,000 | 11,000 | 11,500 | 23.8 |
| 22 | 14,500 | 16,000 | 16,500 | 37.3 |

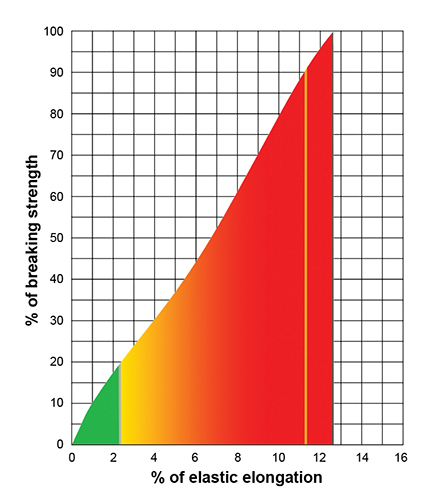

Working Details
Green working 351 ft. lbs./lb.
Red ultimate 9,915 ft. lbs./lb.
Specific Gravity
1.38
Dielectric Strength
The maximum allowable leakage for clean, dry Optimus is 100 micro- amperes when tested at 100kV per Yale Method 712-1701 Rev 1 “Routine Production Test.” Absorbed and entrained moisture or impurities will increase rope’s conductivity dramatically.
