Nylon Brait

Plaited 8-Strand

Nylon Brait combines braiding technology with plaited rope optimizing the best of both rope styles. Nylon Brait’s most outstanding feature is its high energy absorption, which comes from a combination of the very long yarn path and stranditure developed especially to maximize energy absorption.

Larger-Brait-List-Img-Yale-Cordage
Jump To:

Nylon Brait

Nylon Brait combines braiding technology with plaited rope optimizing the best of both rope styles. Nylon Brait’s most outstanding feature is its high energy absorption, which comes from a combination of the very long yarn path and stranditure developed especially to maximize energy absorption.

Nylon Brait can absorb (or mitigate) greater amounts of dynamic energy than 3-stranded or braided rope structures with less damage. Brait’s energy absorption also keeps the corresponding loads on attachment points smaller since the rope does more work internally. Brait is easily spliced and the spliced rope delivers 100% of the ropes advertised strength.

Nylon Brait Splicing Instructions

Approved Splice Technique: #10017302 (Brait Eye Splice, PDF, 0.3 MB)

Brait to Chain Splice (0.2 MB)

Nylon Brait Specifications and Data

Diameter (in)Weight (lbs/100ft)Avg Spliced Break Strength (lbs)Min Spliced Break Strength (lbs)Maximum Working Load 4:1 **(Lbs)Average WL Energy Absorption Ft Lbs***Average Break Strength *(Lbs)Ultimate Energy Absorption Ft-Lbs/CftUltimate Energy Absorption Ft-Lbs/LbEst. Residual Strength **(%)Linear Density (Lbs/100ft)
3/83.840003600800
1/26.1830074701660
17/326.4920082801840
5/89.412200109802440
21/329.612900116102580
11/161115000135003000
3/41417000153003400
7/81922000198004400
123.727000243005400
1-1/830.534750312756950
1-1/435.640500364508100
1-1/249.8567005103011340
1-5/859.5677006093013540
1-3/474847007623016940
* Knots and abrupt bends significantly reduce the strength of all ropes and lower the maximum working load. ** Working load is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s rated working load constitute hazardous shock load and would void the normal working-load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of rope.
Diameter (mm)Weight (kg/100m)Avg Spliced Break Strength (kg)Min Spliced Break Strength (kg)Maximum Working Load 4:1 **(kg)Average Break Strength *(kg)Ultimate Energy AbsorptionEst. Residual Strength **(%)Linear Density (Kg/100m)Notes
105.718001620360
139.137503375750
139.541503735830
1614550049501100
1714.3585052651170
1716.4680061201360
1920.8770069301540
2228.31000090002000
2535.312250110252450
2945.415750141753150
325318350165153670
3874.225700231305140
4188.630700276306140
44110.238450346057690
* Knots and abrupt bends significantly reduce the strength of all ropes and lower the maximum working load. ** Working load is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s rated working load constitute hazardous shock load and would void the normal working-load recommendation. Consult Yale Cordage for guidelines for working loads and the safe use of rope.

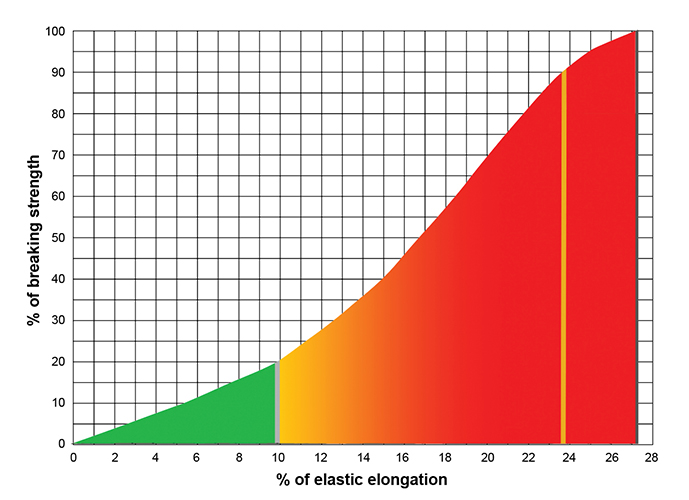

Working Details

Green working 1,426 ft. lbs./lb.

Red ultimate 23,680 ft. lbs./lb.

Specific Gravity

1.14

RopeCharts.NylonBrait.v1
