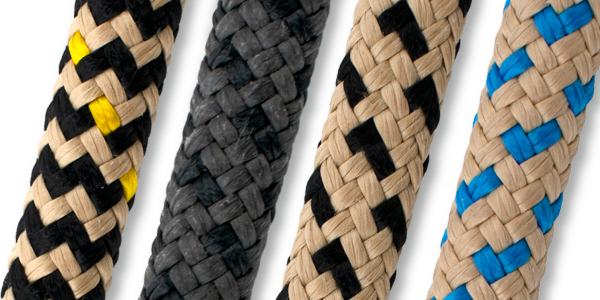

All Bee Line hitch cords feature a heat resistant Technora jacket for ultimate durability. Bee Line has one of the highest heat-resistant covers available in the market. Each version of Bee Line can be spliced or terminated with sewn eyes depending on climber preference.
Bee Line Prussic offers high heat resistance provided by its Vectran core and a 75% / 25 % Technora / Polyester braided cover.
Our prefabricated assemblies have a small 1-inch eye with clear Maxijacket coating for enhanced wear resistance and added rigidity for installing carabiners through the eyes. The 5/16” diameter is perfectly compatible with 11mm and 11.7mm climbing lines. The 3/8” is also used on 11.7mm, along with 12mm+ climbing lines.
Diameter (Inches) | Average Break Strength* *(Lbs) | Suggested Design Factor 10:1 **(Lbs) | Weight (Lbs/100f) |
5/16 Vectran Core | 8,000 | 800 | 3.7 |
3/8 Vectran Core | 11,000 | 1,100 | 4.8 |
Diameter (mm) | Average Break Strength* *(kg) | Suggested Design Factor 10:1 **(kg) | Weight (Kg/100m) |
8mm Vectran Core | 3,629 | 363 | 5.5 |
10mm Vectran Core | 4,990 | 499 | 7.1 |
* Average break strength is based on spliced rope or capstans samples. Knots and abrupt bends significantly reduce the strength of all ropes and lower the design factor.
** Suggested design factor is based on static or moderately dynamic lifting/pulling operations. Instantaneous changes in load, up or down, in excess of 10% of the rope’s suggested design factor constitute hazardous shock load and would void the suggested design factor recommendation. The end user is responsible for choosing the correct design factor specific to their application.
